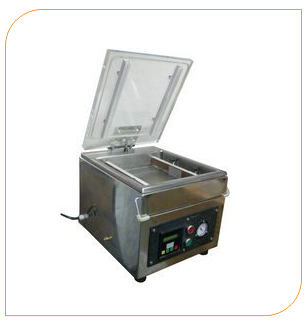

Mini Table Top
Vacuum Packing Machine
|
|
| Product Description |
| Model name |
: |
Table Top Mini.
Vacuum chamber size: 365 Width x 375 Length x 80 mm Height. |
| Over all Size |
: |
415 x 490 x 350 |
| Construction |
: |
Complete SS 304. |
| Lid |
: |
Transparent Acrylic. |
| Gas |
: |
Optional with 4 nozzles. |
| Vacuum monitoring & control |
: |
German, dial gauge & vacuum sensor optional |
| Electrical consumption |
: |
Maximum 1 KW, can be operated on domestic connection. |
| Packing cycle |
: |
2 to 3 Cycles/ minute depending upon the product to vacuum packed. |
| |
|
|
Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars.
• Fiber glass sealing bars for short circuit protection |
| |
|
|
|
|
| |
Winner Electronics presents table top Vacuum packaging machine. Two standard vacuum chamber models are available.
Mini & Commercial - The vacuum chamber size of this machine is 365 x 375 x 80 . The lid of the Table Top machine is flat transparent Acrylic to observe the .complete process.. Domes shape lids are also available. Electrical consumption of machine is 0.5 Kw. Packing cycle is 3 to 4 Cycles/ minute depending upon the product to be packed. |
| |
|
 |

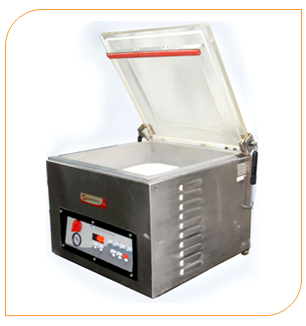

| Product Description |
| Model name |
: |
Table Top Mini. |
| Vacuum chamber size |
: |
465 Width x 440 Length x 80 mm Height. 100 Height mm optional |
| Over all Size |
: |
415 x 490 x 350 |
| Construction |
: |
Complete SS 304 |
| Lid |
: |
Transparent Acrylic or SS Dome optional. |
| Vacuum Pump |
: |
10 cum |
| Gas Flushing |
: |
By default 4 nozzles |
| Vacuum monitoring & control |
: |
German dial gauge, & vacuum sensor optional |
| Electrical consumption |
: |
Maximum 1 KW can be operated on domestic connection. |
| Packing cycle |
: |
2 to 3 Cycles/ minute depending upon the product to vacuum packed. |
| |
|
|
Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars.
• Fiber glass sealing bars for short circuit protection. |
| |
|
|
|
| |

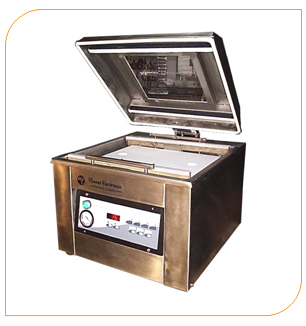

| Table Top Commercial |
 |
| Product Description |
| Model name |
: |
Table Top Commercial |
| Vacuum chamber size |
: |
465 Width x 440 Length x 80 mm Height. 100 Height mm optional |
| Over all Size |
: |
415 x 490 x 350 |
| Construction |
: |
Complete SS 304 |
| Lid |
: |
Transparent Acrylic or SS Dome optional |
| Vacuum Pump |
: |
20 cum |
| Gas Flushing |
: |
By default 4 nozzles |
| Vacuum monitoring & control |
: |
German dial gauge, dial gauge & vacuum sensor optional |
| Electrical consumption |
: |
Maximum 2 KW can be operated on domestic connection. |
| Packing cycle |
: |
2 to 3 Cycles/ minute depending upon the product to vacuum packed. |
| |
|
|
Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars.
• Fiber glass sealing bars for short circuit protection |
| |
|
|
|
| |

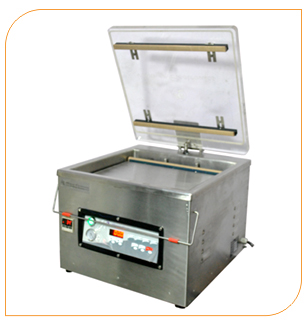

| Table Top Lab |
 |
| Product Description |
| Model name |
: |
Table Top Lab |
| Unique features |
: |
Temperature controller for sealing bar, three gases purging and 4 actuators |
| Vacuum chamber size |
: |
465 Width x 440 Length x 80 mm Height. 100 Height mm optional |
| Over all Size |
: |
415 x 490 x 350 |
| Construction |
: |
Complete SS 304 |
| Lid |
: |
Transparent Acrylic or SS Dome optional |
| Vacuum Pump |
: |
20 cum |
| Gas Flushing |
: |
By default 4 nozzles |
| Vacuum monitoring & control |
: |
German dial gauge, & vacuum sensor optional |
| Electrical consumption |
: |
Maximum 2 KW can be operated on domestic connection. |
| Packing cycle |
: |
2 to 3 Cycles/ minute depending upon the product to vacuum packed. |
Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars.
• Fiber glass sealing bars for short circuit protection |
| |
|
|
|
| |

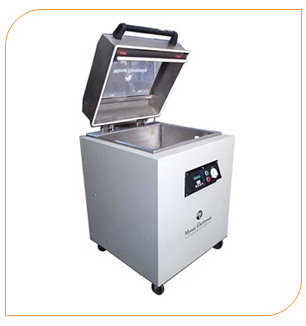

| Floor Model Jumbo |
 |
| Product Description |
| Model name |
: |
Floor Model Jumbo
Vacuum chamber size: 625 Width x 550 Length x 350 mm Height. |
| Over all Size |
: |
675 x 665 x 850 |
| Construction |
: |
Complete SS 304. |
| Lid |
: |
SS dome with Transparent Acrylic widow |
| Vacuum Pump |
: |
40 cum / 63 cum |
| Gas Flushing |
: |
By default |
| Vacuum monitoring & control |
: |
German dial gauge, & vacuum sensor optional |
| Electrical consumption |
: |
Maximum 3.5 KW only 3 Phase |
| Packing cycle |
: |
2 to 3 Cycles/ minute depending upon the product to vacuum packed |
| |
|
|
Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars.
• Fiber glass sealing bars for short circuit protection. |
| |
|
|
|
| |

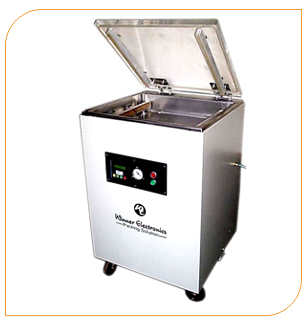

| Vacuum Packing Machine Floor Model |
 |
| Product Description |
| Model name |
: |
Floor Model Midi.
Vacuum chamber size: 625 Width x 550 Length x 350 mm Height. |
| Over all Size |
: |
675 x 665 x 850 |
| Construction |
: |
Complete SS 304. |
| Lid |
: |
SS dome with Transparent Acrylic widow. |
| Gas Flushing |
: |
By default |
| Vacuum monitoring & control |
: |
German dial gauge, & vacuum sensor optional |
| Vacuum Pump |
: |
40 cum / 63 cum |
| Electrical consumption |
: |
Maximum 3.5 KW only 3 Phase |
| Packing cycle |
: |
2 to 3 Cycles/ minute depending upon the product to vacuum packed |
| |
|
|
Winner special :
• Maintenance free Vacuum actuator for lifting sealing bars.
• Fiber glass sealing bars for short circuit protection. |
| |
|
|
|
| |
|
| |
