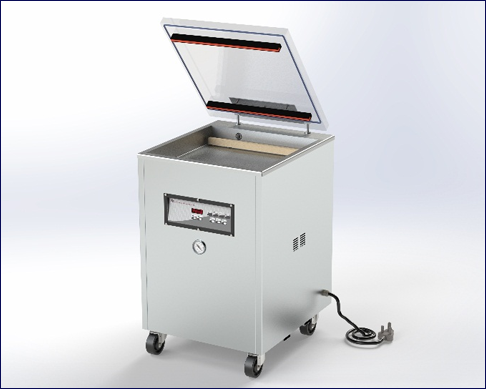

Model Name : Floor Model Jumbo: Vacuum Packaging Machine
Vacuum Chamber size : 625 Width x 550 Length x 350 mm Height
Overall Size : 685 x 665 x 850
Construction : Complete SS 304
Lid : SS dome with Transparent Acrylic widow
Vacuum Pump : 40 cum/ 665LPM or 63 cum /1066 LPM
Gas Flushing : By default
Vacuum monitoring & control : German dial gauge, & vacuum sensor optional
Electrical consumption : Maximum 3.5 KW only 3 Phase
Standard cycle : 2 to 3 Cycle time as per customers’ requirements possible
Winner special : Maintenance free Vacuum actuator for lifting sealing bars.
Fiber glass sealing bars for short circuit protection.
We make customize machines as per customers requirement, quantity no bar.

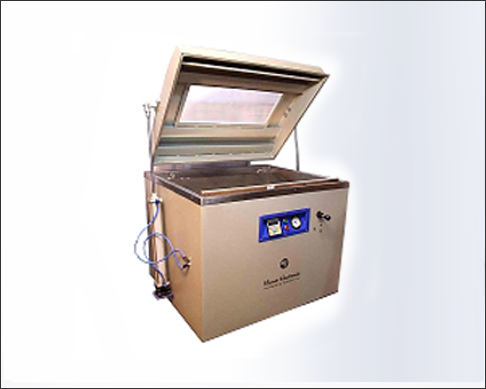

Model name : Table Top Lab Vacuum Packaging Machine
Unique features : Temperature controller for sealing bar, three gases purging and 4 actuators.
Vacuum chamber size : 465 Width x 440 Length x 80 mm Height. 100 Height mm optional
Over all Size : 415 x 490 x 350
Construction : Complete SS 304.
Lid : Transparent Acrylic or SS Dome optional.
Vacuum Pump : 20 cum
Gas Flushing : By default 4 nozzles.
Vacuum monitoring & control : German dial gauge, & vacuum sensor optional
Electrical consumption : Maximum 2 KW can be operated on domestic connection.
Packing cycle : 2 to 3 Cycles/ minute depending upon the product to vacuum packed.
Winner special :
Maintenance free Vacuum actuator for lifting sealing bars.
Fiber glass sealing bars for short circuit protection.
